Line Pump

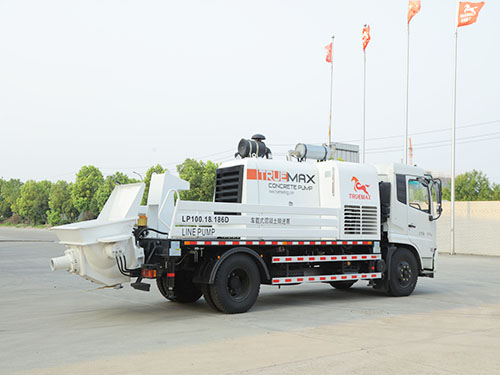

LP100.18.186D
LP100.18.186D
Introduction:TRUEMAX concrete pump vehicle is equipped with unique technology. Vehicle is designed with proprietary backflow prevention of oil return circuit. During equipment maintenance and repair process, no need to pump hydraulic oil in hydraulic oil tank , effectively reducing a large number of working hours and 2nd pollution and preventing oil pollution to the environment.

Product Details

1.Through the disk button, easy to operate, you can automatically withdraw the concrete piston into the water tank, TRUEMAX double cylinder piston return technology reduces replacement time of concrete piston
2.TRUEMAX concrete pump vehicle is equipped with unique technology. Vehicle is designed with proprietary backflow prevention of oil return circuit. During equipment maintenance and repair process, no need to pump hydraulic oil in hydraulic oil tank , effectively reducing a large number of working hours and 2nd pollution and preventing oil pollution to the environment.
3.Just turn the electrical control button, the high and low pumping pressure switch will be completed in a flash, you can even switch in the pumping process according to needs.
4.Using the large displacement integrated hydraulic integration block  in the industry. Compact design, simple oil passage, simple and reliable connection of hydraulic pipeline greatly reduce leakage, reduce system liquid resistance and system temperature rise
5.DEUTZ diesel engine, with low speed big torque, fast acceleration starting; small volume and light weight; low vibration, low noise, low fuel consumption, long repairing interval cycle, low operating cost; emission China V; high reliability with low cost.
6.The hydraulic system mainly consists of three pumps, which control the movements of the main cylinder, swing distributing oil cylinder and stirred motor.
7.The overall structure of the vehicle with more reasonable layout. From the angle of manipulation, the vehicle gravity center distribution and the optimal driving control angle are taken into full consideration.

Leave Message

*
*
*

Parameters Table

ITEMS

UNITS

LP100.18.186D

Performance

Theo.Output(Low/High)

m³/h

100/50

Concrete Pressure(Low/High)

MPa

44092

Main oil Pump

/

Rexroth

Distribution Valve

/

S Valve

Concrete Cylinder(Bore×Stroke)

mm

φ230×1800

Hopper Size(Capacity×Feeding Height)

m³×mm

0.7×1460

Outlet Diameter

mm

DN150

Power system

Engine

/

Deutz

Rated power

kW

186

Rated Speed

r/min

2100

Hydraulic system

Hydraulic System

/

Open Circuit

Type of Cooling

/

Air Cooling

Chassis

Chassis Brand

/

DONGFENG

Axles

/

4×2

Overall

Overall Dimensions(L×W×H)

mm

9200×2480×3270

Total Weight

kg

13800
