Column Climbing Concrete Placing Boom

PB32A-3R-II
PB32A-3R-II
Introduction:Three arms design”R”folding.The machine is driven by hydraulic and slewing flexibly,with wide working range.Arms adopt high strength steel plate which is stronger and lighter.

Product Details

1.Three arms design”R”folding.The machine is driven by hydraulic and slewing flexibly,with wide working range.Arms adopt high strength steel plate which is stronger and lighter.

2.Two modes of operation:wireless remote control and cable remote control,easy to operate.

3.Inner-climbing frames:floor frames or wall(lift or shaft)frames,which are suitable for different jobsites.

4.The operation adopts switching value control and electro-hydraulic proportion control.You can choose suitable one according to the requirement.


Leave Message

*
*
*

Parameters Table

ITEMS

UNITS

PB32A-3R-II

Performance

 Radius of Placing Boom

m

31.7

Free standing Height

m

21.3

Slewing Range

/

360°

Circumstance Temperature

-20~55

Power(subject to Customer)

/

380V/50Hz

Boom

Delivery Pipeline Diameter

mm×mm

φ133×4.5

Delivery Hose Diameter

×mm

5×3000

1st Section

Length

m

14.5

Articulation

/

0°~86°

2nd Section

Length

m

9.2

Articulation

/

0°~180°

3rd Section

Length

m

8

Articulation

/

0°~180°

4th Section

Length

m

/

Articulation

/

/

Type of Hydraulic Oil

Circumstance Temperature 5-55

Hm46 Anti-wear hydraulic oil

Circumstance Temperature -20-5

Hm32 Anti-wear hydraulic oil

Motor

Power

kW

11

Hydraulic Pressure

Mpa

28

Mode of Slewing

/

Gear Slewing

Application scenario

/

Floor Climbing or Shaft Cilmbing

Balance Arm

/

/

Total Weight

kg

18150

Lifting Unit

kg

4150

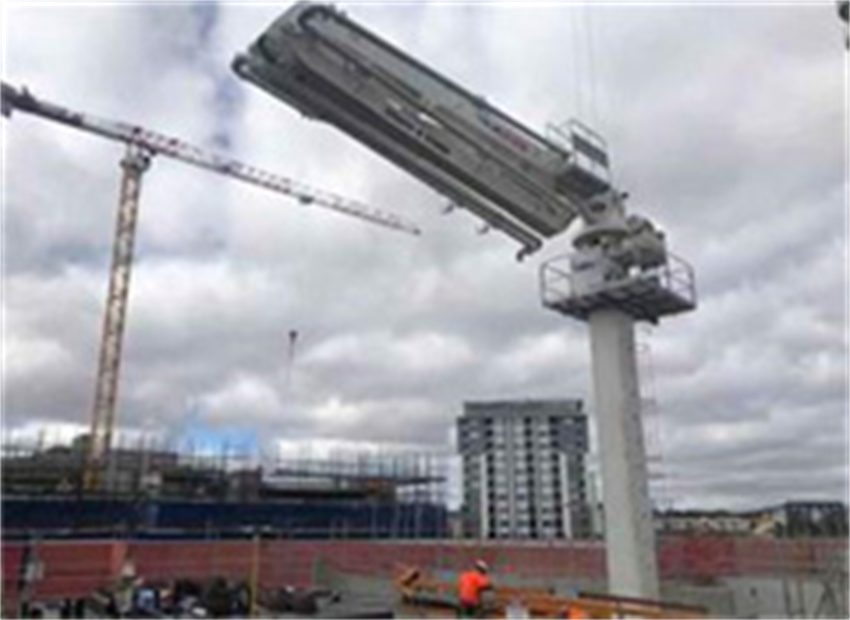

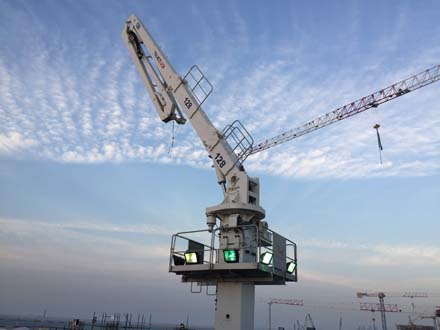

Customer case
