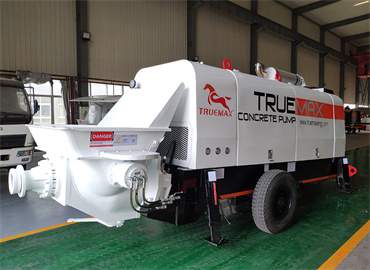

Stationary Concrete Pump
SP100.23.264D
Introduction：With high-pressure low-emission, low pressure, large displacement of two kinds of concrete transportation mode, the user can according to the engineering of concrete conveying height (or distance) and the displacement demands reasonable choice
Product Details
| 1、With high-pressure low-emission, low pressure, large displacement of two kinds of concrete transportation mode, the user can according to the engineering of concrete conveying height (or distance) and the displacement demands reasonable choice | |||
| 2、Hydraulic system is reliable, long life | |||
| 3、Using open hydraulic circuits, the reversing impact is small, less oil links | |||
| 4、Valve group of high quality, small volume, convenient maintenance | |||
| 5、Adopting Germany rexroth brand double gear pump, excellent performance, reliable work | |||
| 6. Electric control system has high reliability, the main electrical components are all imported | |||
| 7、Have a key to the pump function, when a short tube jam phenomenon, can be used as a means to remove plugging pipe | |||
| 8、Rational layout, space is large | |||
| 9、High strength flowing type hopper (no dead Angle and material absorption enhancement), not fluency designed hopper, concrete fluidity, absorb beyond peer enterprise standards, pumping efficiency is highest, replacement parts, also is very convenient | |||
| 10、Adopt Commins diesel engine, powerful, low fuel consumption, low noise, low emissions | |||
Leave Message
Parameters Table
ITEMS | UNITS | SP100.23.264D | |
Performance | Theo.Output(Low/High) | m³/h | 100/50 |
Concrete Pressure(Low/High) | MPa | 11.6/23 | |
Main oil Pump | / | Rexroth | |
Distribution Valve | / | S Valve | |
Concrete Cylinder(Bore×Stroke) | mm | φ200×1800 | |
Hopper Size(Capacity×Feeding Height) | m³×mm | 0.7×1370 | |
Power system | Engine | / | Cummins |
Rated power | kW | 264 | |
Rated Speed | r/min | 2100 | |
Hydraulic system | Hydraulic System | / | Open Circuit |
Type of Cooling | / | Air Cooling | |
Overall | Overall Dimensions(L×W×H) | mm | 7315×2060×2650 |
Total Weight | kg | 8100 | |

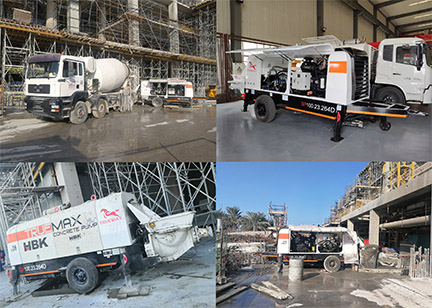

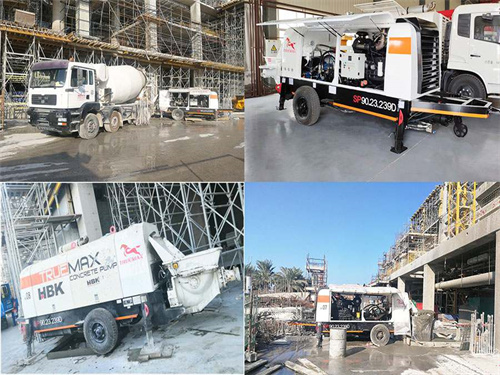

Customer case
