Stationary Concrete Pump

SP50.10.60D
SP50.10.60D
Introduction:With high-pressure low-emission, low pressure, large displacement of two kinds of concrete transportation mode, the user can according to the engineering of concrete conveying height (or distance) and the displacement demands reasonable choice.

Product Details

1.With high-pressure low-emission, low pressure, large displacement of two kinds of concrete transportation mode, the user can according to the engineering of concrete conveying height (or distance) and the displacement demands reasonable choice.

2.Hydraulic system of this  Concrete Pump is reliable, long life.

3.Using open hydraulic circuits, the reversing impact is small, less oil links.

4.Valve group of high quality, small volume, convenient maintenance.

5.Adopting the south Korean Kawasaki main oil pump, excellent performance, reliable work.

6.Electric control system of this  Concrete Pump has high reliability, the main electrical components are all imported.

7.Have a key to the pump function, when a short tube jam phenomenon, can be used as a means to remove plugging pipe.

8.Rational layout, space is large.

9.High strength flowing type hopper (no dead Angle and material absorption enhancement), not fluency designed hopper, concrete fluidity, absorb beyond peer enterprise standards, pumping efficiency is highest, replacement parts, also is very convenient.

10.Adopt cummins diesel engine, powerful, low fuel consumption, low noise, low emissions.

Leave Message

*
*
*

Parameters Table

ITEMS

UNITS

SP50.10.60D

Performance

Theo.Output(Low/High)

m³/h

49/26

 Concrete Pressure(Low/High)

MPa

5/10

Main oil Pump

/

Kawasaki

Distribution Valve

/

S Valve

Concrete Cylinder(Bore×Stroke)

mm

φ180×1200

Hopper Size(Capacity×Feeding Height)

m³×mm

0.5×1335

Power system

Engine

/

Cummins

Rated power

kW

60

Rated Speed

r/min

2200

Hydraulic system

Hydraulic System

/

Open Circuit

Type of Cooling

/

Air Cooling

Overall

Overall Dimensions(L×W×H)

mm

5333×1910×2606

Total Weight

kg

4400

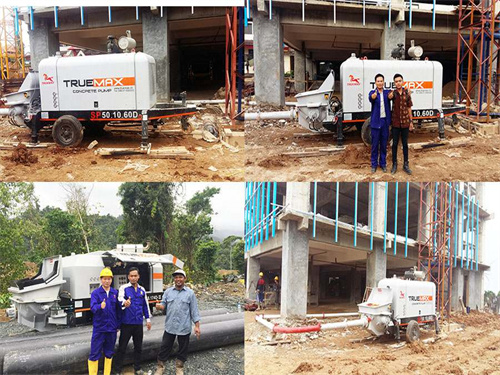

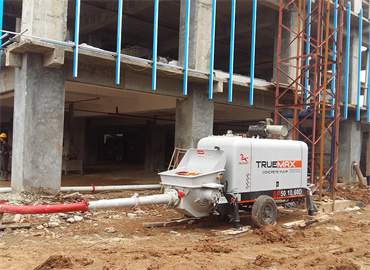

Customer case

SP50.10.60D
