Concrete Truck Mixer
Product Details
Multi Types of Chassis Match
1.The upper can match with different Chassis of 6-10 axles
2.The upper can be designed to match with different Chassis as requirement.
Mixing Drum Structure
1.The drum body and blades are made by quality wearable exclusive steel plate Q345. And the drum is suit for transport both dry and wet materials.
Leave Message
Parameters Table
Model | Unit | CTM10 |
Mixing Type | / | Dry/Wet |
Geometric Volume of Drum | m³ | 14.4 |
Material of Drum & Blades | / | Q345 |
Inclination Angle for Drum | / | 13 |
Padding Rate | % | 69.4 |
Residual Rate | % | <0.2 |
Charging Speed | m³/min | ≥3 |
Discharging Speed | m³/min | >1 |
Mixing Speed | r/min | 0-14 |
Hydraulic Pump | / | Rexroth |
Hydraulic Motor | / | Rexroth |
Reducer | / | ZFP4300 |
Radiator | / | KT-18 |
Capacity for Water Tank | L | 350 |
Water Supply | / | Air/Electrical Pump |
Slump Range | mm | 50-210 |
Water Supply Pressure | MPa | 0.3 |
Overall Dimension(L*W*H) | mm | 6190×2600×2696 |

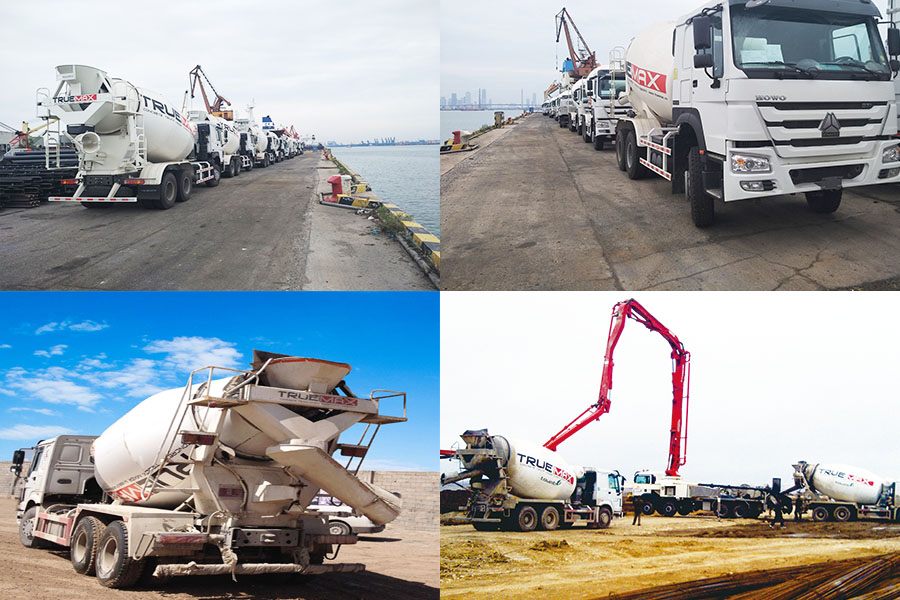

Customer case
